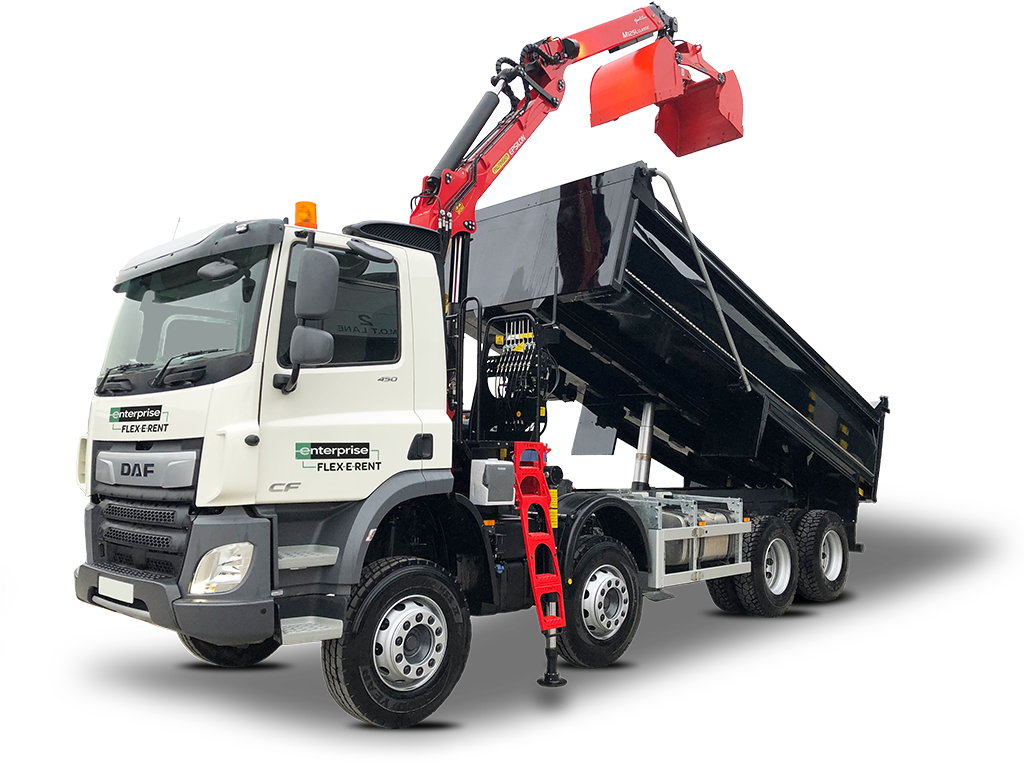

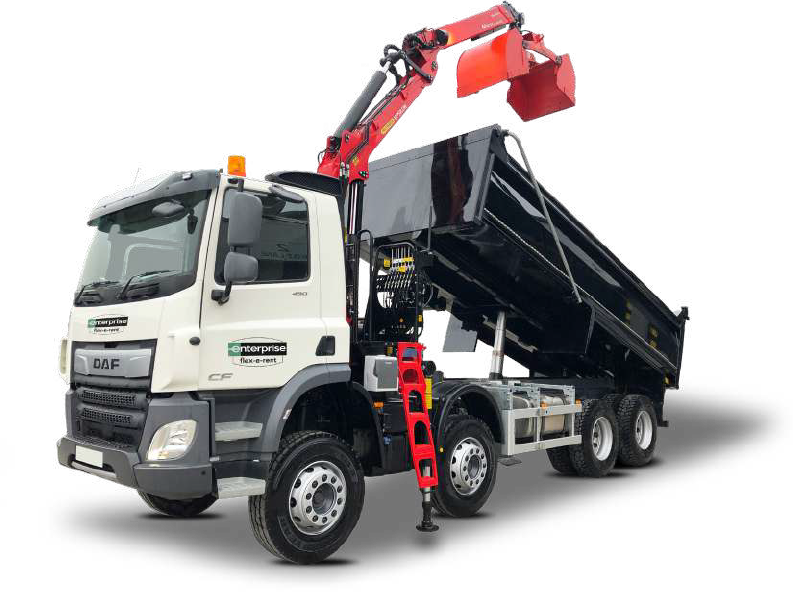

26T Tipper Grab

Chassis Type: 26t 8 x 4 DAF N3GTipper
Body Type: Tipper Grab
GVW: 26 tonnes
Est Payload +/- 5%: 10620kg

Body Bed Length: 5800mm
Body Bed Width: 2180mm
Body Bed Height: 950mm
Wheelbase: 5000mm

• Epsilon M125 LC


• Factory fit PTO & rear 7 pin electrics-low level exhaust required


• High Tensile Steel Titan Series construction tipping body


• 5800mm x 2180mm x 950mm (approx)


• 5mm Hardox 450 wear plate one piece floor


• 5mm Hardox 450 internal kick plates


• 1 piece double skinned 3mm Domex 700 profiled fixed sides


• 3mm Domex profiled top rail, sides, front and tail


• 3mm Domex head board and front spill board


• Heavy duty rear & front posts 4mm Hardox to internal face


• 4mm Hardox top swung tail door with double pivot points


• RSC steel longitudinal body runners


• Domex 700 detachable pressed rear axle wings


• O/S N/S body access over rear axle


• Under floor twin stabilised tipping gear


• Edbro TS26 or Harsh J100


• Audible and visual height warning


• Whole vehicle type approved lateral and rear protection


• Rear protection to include type approved tow bar & 4 bolt hitch, factory fit 7 pin electrics


• Side & rear marker lights to current regulations


• Conspicuity markings cab & body to regulation ECE104
