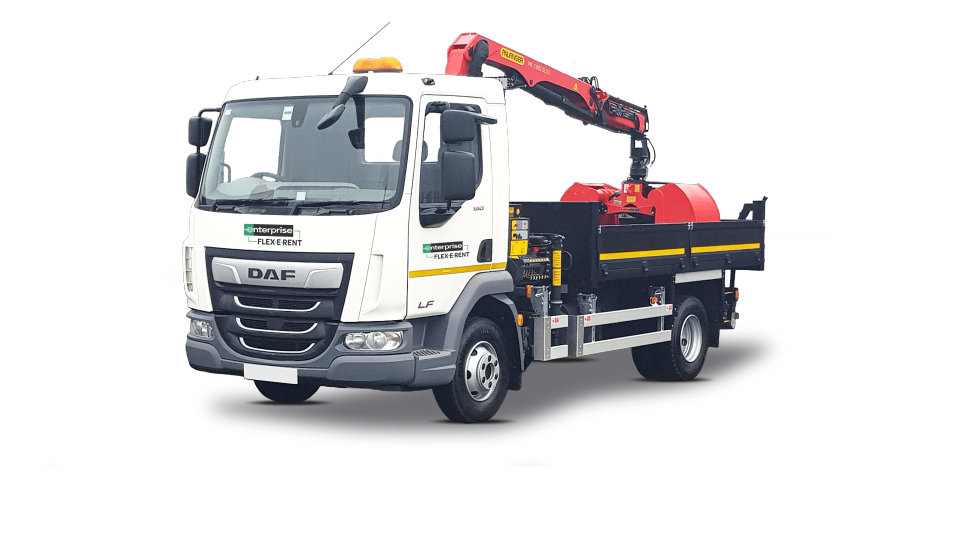

7.5T Tipper Grab

Chassis Type: DAF LF 45 chassis cab
Body Type: Tipper Grab
GVW: 7.5 tonnes
Est Payload: +/- 5%: 1320kg

Body Bed Length: 3670mm
Body Bed Width: 2435mm
Body Bed Height: 380mm
Wheelbase: 3600mm

• 125 x 65mm steel channel section


• 80mm x 125mm steel channel section, of integral construction to give low loading height



• Two piece insulated pressed steel floor incorporating side raves


• Heavy-duty ladder gantry manufactured from 100 mm x 50mm x3mm steel box section


• Tailgate fitted with 2 tar chutes


• One man operated steel body prop


• In cab warning light and buzzer alert when the body is in the raised position. In accordance with C & U directives


• Binotto front-end tipping gear, complete with PTO operation


• Type approved aluminium side guards fitted to the nearside and offside of the body


• 16” amber rotating beacon fitted to the cab roof


• Lifting moment 60.4 kNm [6.2mtr]


• Classification according to EN12999 : 2011


• Slewing range 400°


• 2 section hydraulic extension boom from 5.5m - 7.4m


• Telescopic outriggers with hydr. extension to both sides - width 4.9m


• BEL illuminated control panels and warning lights on stabilisers


• Box level on each side of crane


• Slipper pad 300mm x 300mm x 40mm (Force 9 ton) x1


• Storage box with key lock (holds single EZ2189 square pad) for 300mm square pad x2


• 7.5T-10T PK4501 - PK6501HP - front mounting pump/PTO up to 70 litres with handbrake interlock


• Conspicuity markings cab and body to regulation ECE104
