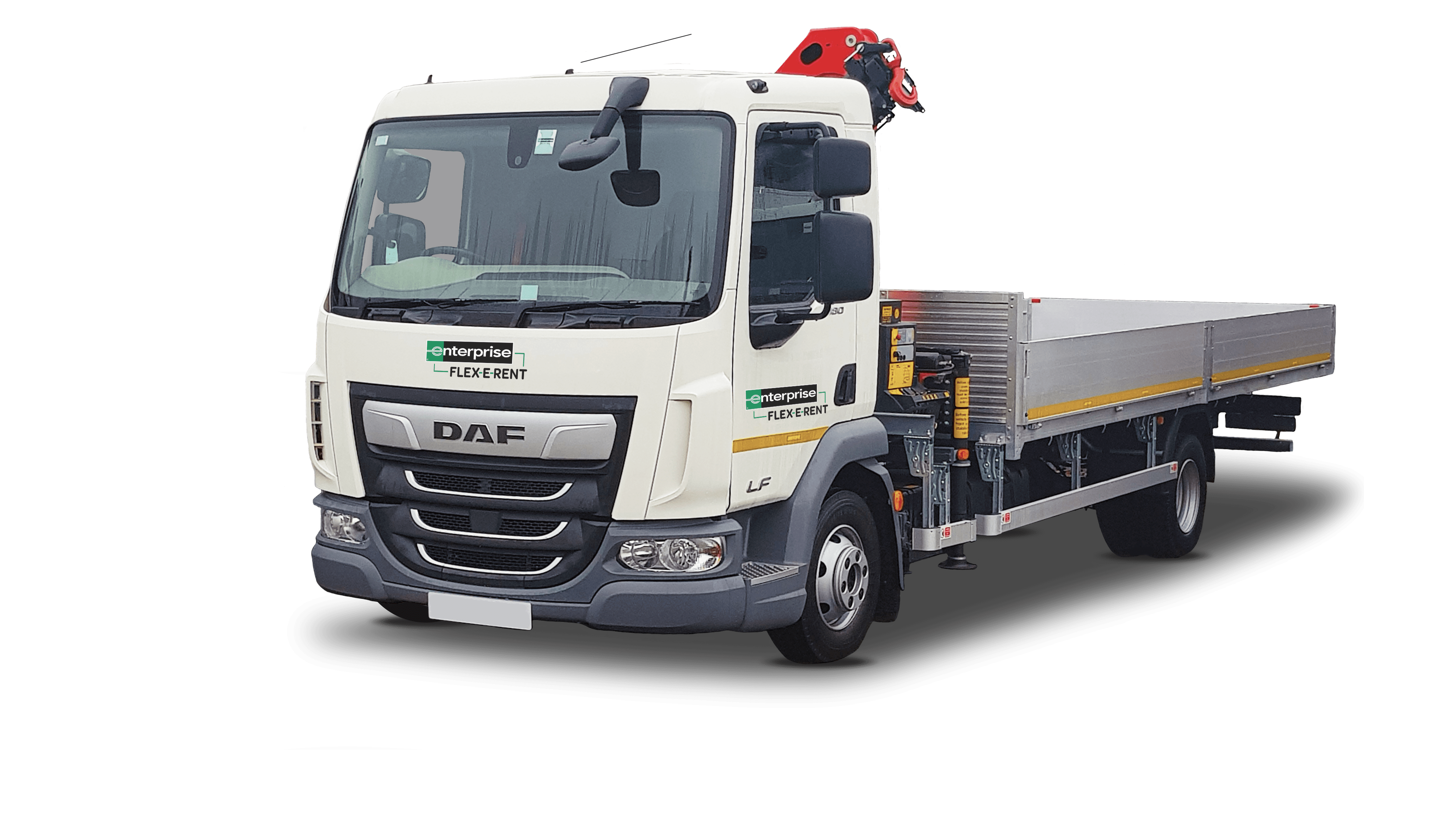

7.5T Dropside Crane

HIRE A 7.5T DROPSIDE CRANE

7.5t-Dropside-Crane

Close ×

SPECIFICATION

Chassis Type: DAF LF 45 chassis cab
Body Type: Dropside
GVW: 7.5 tonnes
Est Payload +/- 5%: 1780kg

DIMENSIONS

Body Bed Length: 5486mm
Body Bed Width: 2455mm
Body Bed Height: 406mm
Wheelbase: 4300mm

KEY FEATURES

  • PK 7001 DS crane

  • Aluminium double dropside body

  • 100mm x 50mm x 3mm galvanised channel section

  • 18mm WISA deck floor

  • 75mm x 50mm x 6mm aluminium angle

  • 1” Galvanised mesh, capped with 1” D moulding.

  • 8” Aluminium corrugated headboard planks

  • 1” x 1” aluminium removable corner poses with sockets

  • 1.8mm double skinned (25.4mm overall thickness)
  • Aluminium planked side board 406mm high.

  • Thermoplastic wings

  • Rope hooks fitted to all bearers

  • Lifting moment 60.4 kNm [6.2mtr]

  • Classification according to EN12999 : 2011

  • Slewing range 400°

  • 2 section hydraulic extension boom from 5.5m - 7.4m

  • Telescopic outriggers with hydr. extension to both sides - width 4.9m

  • AUSVW/AUSW stabiliser beam not stowed
  • BEL illuminated control panels and warning lights on stabilisers

  • Crane accessories comprising load hook, fixing attachments, & 50 litre hydraulic oil tank with return filter

  • Paltronic 50 rated capacity indicator with overload protection and emergency cut-off

  • Protection guard on outer boom cylinder

  • Slipper Pad 300mm x 300mm x 40mm (Force 9 ton) x1

  • Pump/PTO up to 70 litres with handbrake interlock

  • Conspicuity markings cab & body to regulation ECE104
