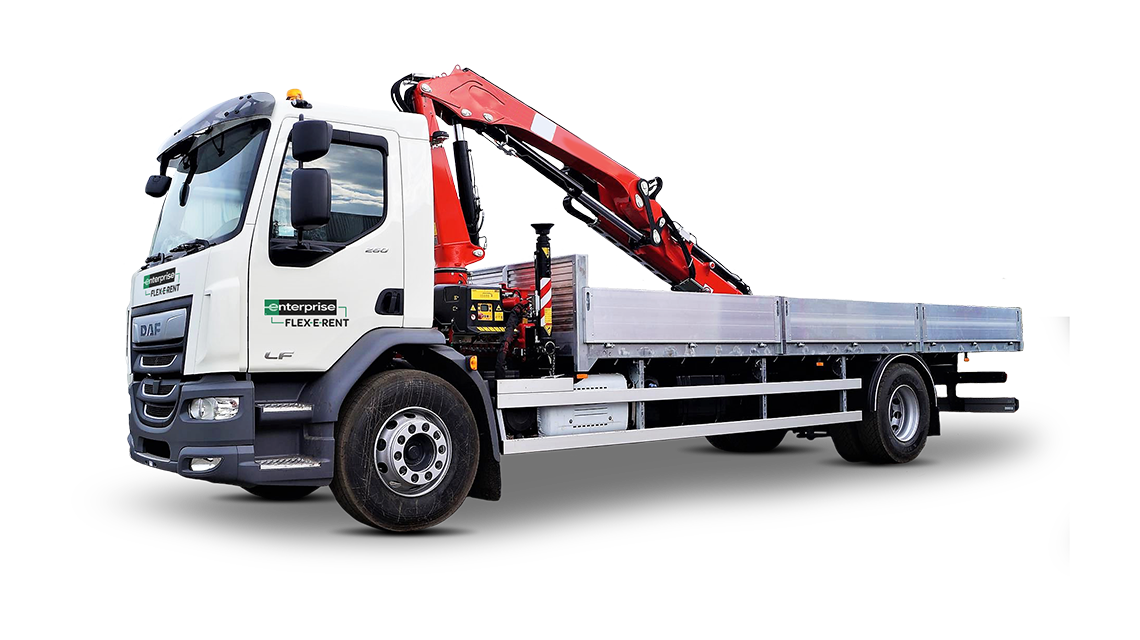

18T Dropside Crane

HIRE A 18T DROPSIDE CRANE

18t Dropside Crane.psd 2

Close ×

SPECIFICATION

Chassis Type: DAF CF65.290 4x2 Sleeper cab
Body Type: Dropside
GVW: 18 tonnes
Est Payload +/- 5%: 9250kg

DIMENSIONS

Body Bed Length: 7925mm
Body Bed Width: 2286mm
Body Bed Height: 406mm
Wheelbase: 6900mm

KEY FEATURES

  • Lifting moment 101.4Nm (10.3mt)

  • Classification according to EN12999 : 2011

  • Slewing range 400°

  • Hydraulic outreach 5.8m

  • Outriggers, with manual extension, including two hydraulic jacks - width 4.8m (R2) with tiltable footplate

  • Painting to traffic light red RAL 3020

  • HPSC-L stability monitoring system (Light)

  • AUSVW/AUSW stabiliser beam not stowed
  • BEL illuminated control panels and warning lights on stabilisers

  • Pilot operated check valves on stabiliser cylinders

  • Controls on each side of the crane

  • Box level on each side of crane with double acting hydraulic cylinders

  • Load hold valve on inner/outer boom cylinder, slewing, & on extension boom cylinder with return oil utilisation

  • Crane accessories comprising load hook, fixing attachments, & 65 litre hydraulic oil tank with return filter

  • High pressure filter
  • Paltronic 50 rated capacity indicator with overload protection and emergency cut off

  • Hour counter

  • Boom above horizontal

  • Secondary leg catches

  • Equipment for two additional hydraulic functions for PK11.001 SLD 3 standard

  • Protection guard on outer boom cylinder

  • Conspicuity markings cab & body to regulation ECE104

DOWNLOAD PDF SPECIFICATION
