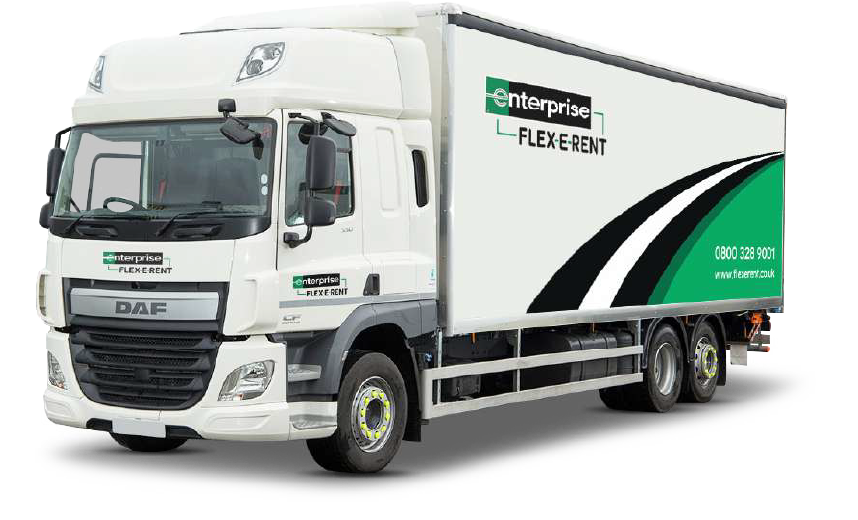

26T Box Sleeper

Specification

Chassis Type: DAF CF65.290 FAR 6x2 Sleeper cab
Body Type: Box
GVW: 26 tonnes
Est Payload +/- 5%: 12000kg

Dimensions

Body Internal Length: 8706mm
Body Internal Width: 2490mm
Body Internal Height: 2500mm
Overall Length: 8858mm
Overall Width: 2550mm
Overall Height: 2438mm
Wheelbase: 5600mm

HIRE A 26T BOX SLEEPER

26T Box Sleeper 456

Close ×

KEY FEATURES

  • Galvanised steel 3mm bearers and 5mm x 142mm runners

  • Subframe fitted over rear wheels to maintain 304mm bearer pitch

  • Angled cleats fitted on every bearer

  • Anti-slip Buffalo 27mm birch plywood with phenolic faced overlay

  • Rear board fitted with two strips of yellow anti-slip tape

  • DEL rear floor plate bearer, yellow anti-slip tape fitted to the full width

  • Cappings, corner pillars raves and cant rails
  • Bulkhead to be constructed from 17mm GRP white impregnated panel gloss finish

  • 2 off externally mounted 50mm x 75mm x 1270mm galvanised angle bulkhead

  • Internal kick strips to sidewalls and front bulkhead galvanised steel 300mm

  • Heavy duty pressed galvanised steel with gusseted corners

  • DEL rear floor plate with yellow anti-slip tape fitted to the top

  • 200mm rear buffers fitted vertically at the base of the pillars to suit the tailift
  • One piece translucent fibreglass panel bonded to galvanised steel roof sticks (600mm) over aluminium framework

  • Anodised aluminium side guards (hinged both sides via release pins) to current EWVTA/C&U regulations

  • Two levels of galvanised 1806 load lock track at 750 & 1500mm centres from the floor

  • ECE104 high conspicuity tape to the sides and cab in white and the rear in red

  • DEL DA1500kg tuckaway tail lift
